Corrosion Resistant Chopped Strand Mat Glass Fiber Surface Mat Industrial FRP Lining Solution​

Contact Now
Qingdao Wanguo Sanchuan Fiber Technology Co., Ltd
Visit Website
City:qingdao
Province/State:shandong
Country/Region:china
Contact Person:MrLiu
Contact Now

Corrosion Resistant Chopped Strand Mat Glass Fiber Surface Mat Industrial FRP Lining Solution​

Ask Latest Price
Video Channel
Place of Origin :CHINA
Brand Name :WGSC
Certification :ISO9001
MOQ :500㎡
Price :$7.04-$36.62(㎡)
Delivery Time :3-7 work days
Payment Terms :T/T
Supply Ability :10000㎡/month
Packaging Details :pallets
Material :Fiberglass
Fiber Type :E-Glass
​Grammage :30-60(g/m²)​
Thickness :0.18-0.55(mm)​​
Length :200-1000m
Moisture Content :≤0.2%
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

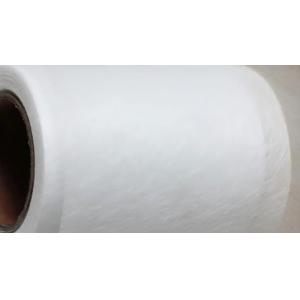

​​Glass Fiber Surface Mat | Marine Corrosion Resistance And Industrial FRP Lining Solutions​​


​1. Product Introduction​

Glass Fiber Surface Mat is a non-woven composite material engineered for superior surface protection and aesthetic enhancement in FRP (Fiber-Reinforced Plastic) laminates. Composed of randomly oriented E-glass fibers bonded with polyester or epoxy-compatible binders, it delivers a smooth, resin-rich finish to composite parts. This product minimizes fiber print-through, improves interlaminar bonding, and acts as a corrosion-resistant barrier, making it ideal for applications demanding high durability and visual appeal in marine, automotive, and construction industries.


​2. Production Process​

​Step​

​Description​

​Fiber Cutoff​

Continuous glass rovings are cut into 1.5–3 inch lengths for uniform distribution.

​Binder Application​

Fibers are bonded using polyester, acrylic, or epoxy binders for structural integrity.

​Random Distribution​

Cutoff fibers are spread evenly on a moving belt to form a non-woven mat.

​Curing​

Heat treatment activates binder curing, ensuring dimensional stability.

​Quality Control​

Parameters like weight (30–100 gsm), thickness (0.2–0.5 mm), and adhesion are tested.


​3. Usage Precautions​

  • ​Storage​​: Keep in dry, cool environments (<35% RH) away from humidity and direct sunlight.

  • ​Temperature Limits​​: Operate within -40°C to 120°C; avoid prolonged exposure to extreme heat.

  • ​Chemical Compatibility​​: Compatible with polyester, vinyl ester, and epoxy resins. Avoid contact with strong acids, solvents, or alkaline solutions.

  • ​Handling​​: Wear gloves to prevent fiber irritation; use sharp cutting tools to minimize fraying.


​4. Key Specifications​

​Parameter​

​Standard GFSM​

​Basis Weight​

30–100 gsm (customizable)

​Thickness​

0.2–0.5 mm

​Tensile Strength​

≥40 N/50 mm (MD)

​Binder Content​

5–15%

​Moisture Content​

≤0.2%

​Flammability​

Self-extinguishing

​Certifications​

ISO 2078, ASTM D578, RoHS


​5. Applications​

  • ​Marine Engineering​​: Hulls, decks, and offshore platforms for saltwater corrosion resistance.

  • ​Automotive​​: Surface layers for car panels, hoods, and electrical enclosures to enhance aesthetics.

  • ​Construction​​: Reinforced concrete panels, roofing materials, and insulation with anti-corrosion properties.

  • ​Wind Energy​​: Turbine blades and nacelle structures for UV and mechanical durability.

  • ​Consumer Goods​​: Bathroom fixtures, storage tanks, and outdoor furniture with smooth, stain-resistant finishes.
